AGV LH 6FF - 3600 kg

AGV LH 6FF - 3600 kg

Category: FRONT FORKS

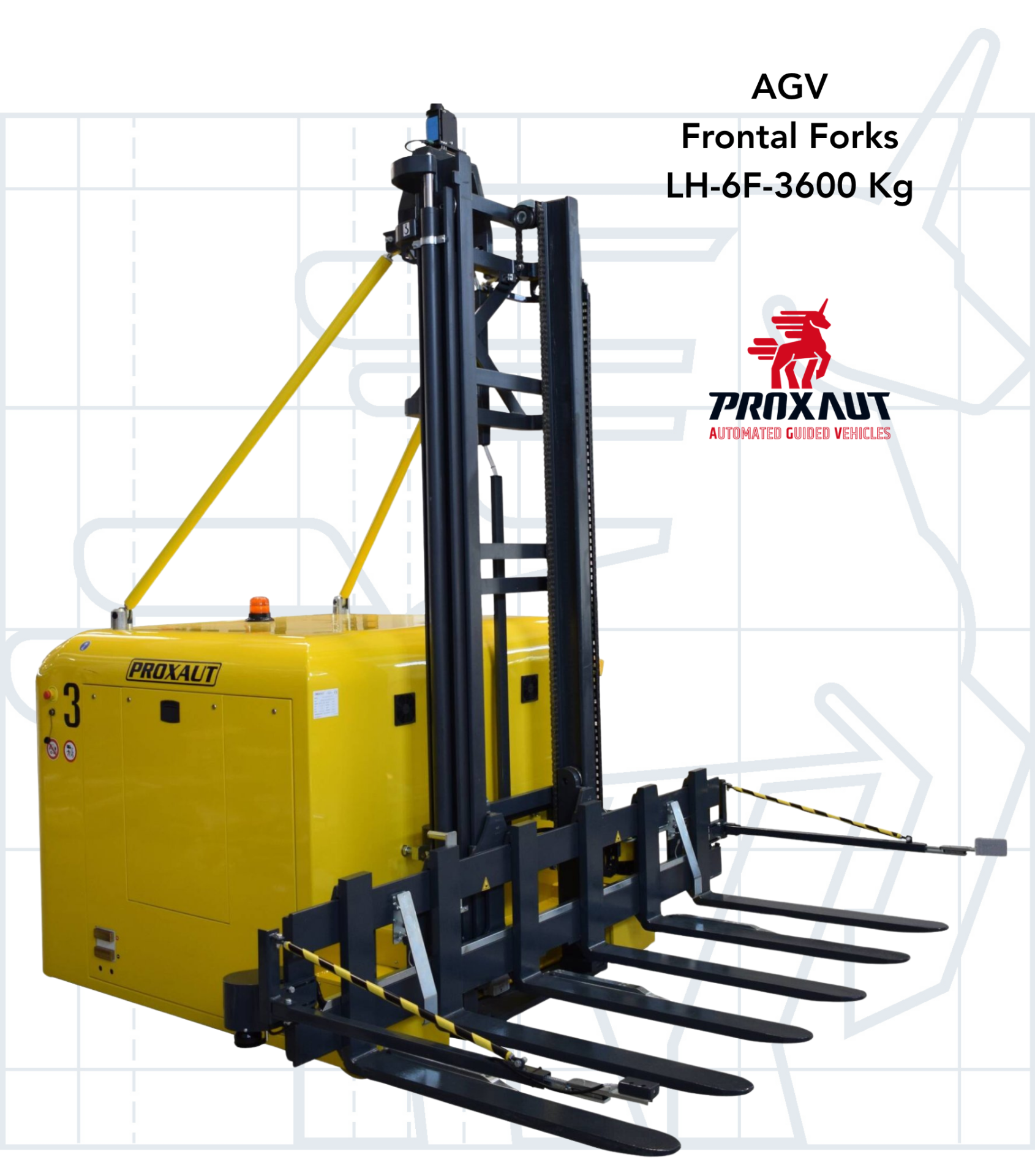

Autonomous guided vehicle forklift with 6 forks and hybrid navigation system

Maximum weight of the loading unit (LU): 3600 Kg (7,937 Pounds / Lb)

The PROXAUT autonomous guided forklift with 6 forks has been specially designed to transport pallets containing glass bottles along a predefined route.

The AGV vehicle is controlled by a management program via a radio-frequency communication system and can move automatically using two guidance systems: the first uses a laser head located on the top of the vehicle, which relies on reflectors positioned along the route pre-set by the program; the second uses an induction wire-guided system.

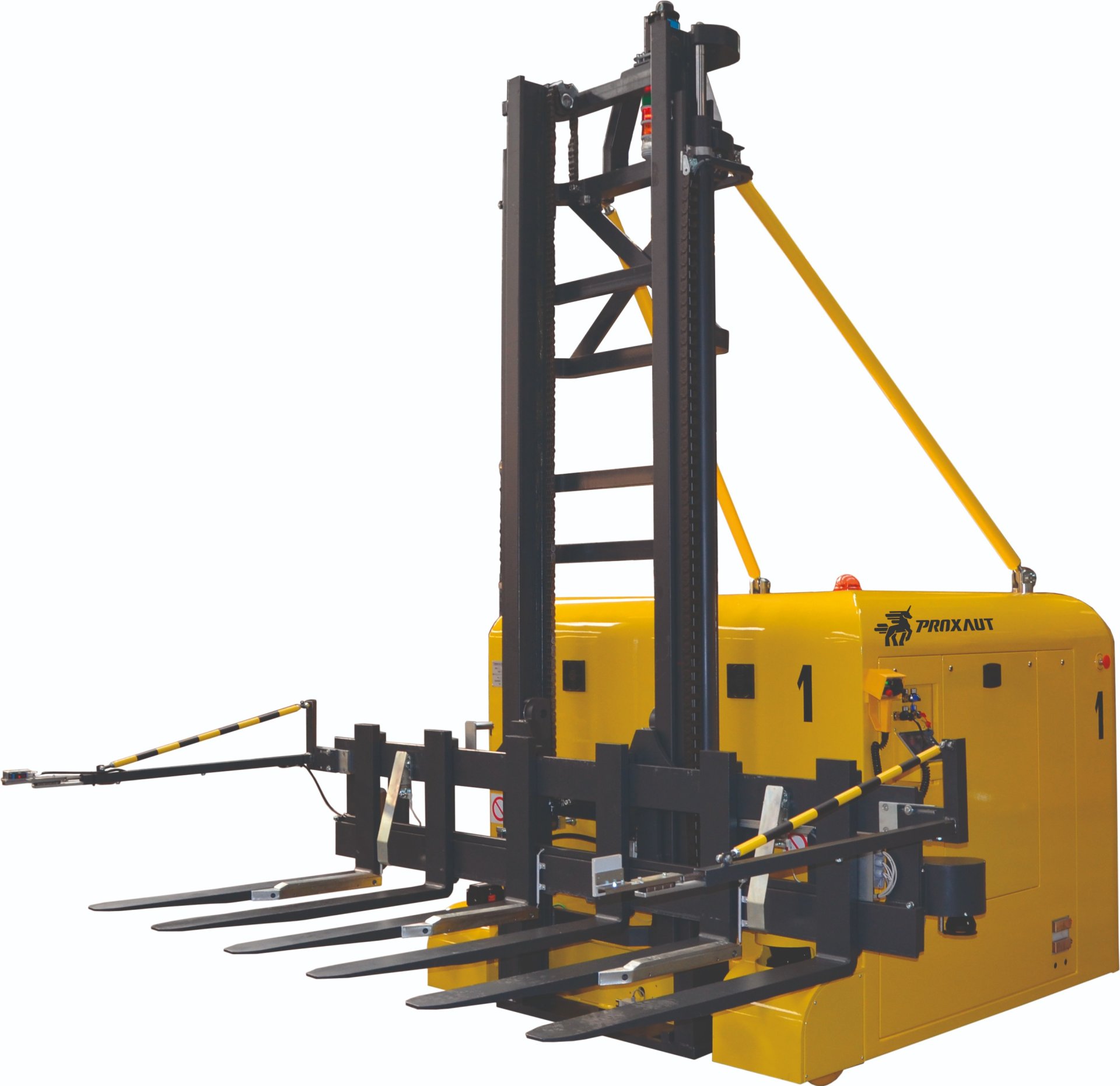

A mast is installed on the rear side of the vehicle and can lift a load up to a maximum of 3,600 kg, with a lifting height of up to 5,500 mm, using six lifting forks.

The Proxaut AGV is equipped with a control system that checks that the load does not protrude.

Safeguarding the transported goods and preventing any possible collision is one of PROXAUT's fundamental objectives, as it is one of the advantages offered by having an AGV system inside a facility.

FAQ

Why have a hybrid navigation system and choose choose PROXAUT technology?

Greater reliability: Combining the induction wire-guided navigation system with the laser system ensures precise and reliable navigation even when one of the two guidance systems loses effectiveness.

Greater precision: Having multiple sources from which to calculate position and route provides stable and accurate guidance even in environments with obstacles or poor visibility. This is an essential requirement especially when AGVs have to operate in industrial environments where precise maneuvers are needed near bays, racks, machines, loading stations, etc., or in reduced-visibility areas. Hybrid navigation enables continuous operation because the AGV can always calculate its position and carry out the mission assigned to it.

Greater safety: More precise localization based on multiple parameters ensures safety by minimizing slowdowns and stops.
In the presence of people or obstacles, this can improve system behavior. Having multiple sources from which to calculate the position and route

Maximum solution customization: ideal solution for complex industrial environments

Proxaut, la “sartoria dell’AGV”, dove si progettano e si realizzano modelli personalizzati, speciali, cuciti sulle esigenze del cliente
